MAGNI Magni ES2223RTP 22m Scherenbühne Megadeck 3x

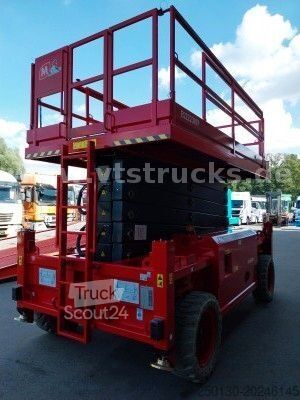

Magni ES2223RTP 22m Scissor Lift Megadeck Fully Electric

- Automatic outriggers for working at height
- Self-locking platform door
- Speed reduction at maximum lift height
- Platform overload sensor
- Automatic braking system
- Non-marking tires
- Tilt indicator with alarm
- Audible lowering signal and dual LED strobe lights
- Safety bar for maintenance work
- Horn
- Emergency stop button
- Emergency lowering system
- Lashing points
- On-board diagnostic system
- Hour meter
- Proportional controls
- Foldable guardrails
- Power supply on platform
- Explosion-protected hydraulic hoses
- Motion alarm
- Charging protection system
- Lifting and anchoring points
- Single-sided and automatic platform extension
- All-wheel drive
- 4-wheel steering
- Load-dependent lowering system
- Emergency pump

Capacity: 750 kg
Max. persons: 4
Working height: 22 m
Iodpfx Aoxl Nybshkjtf
Platform height: 20 m
Length: 4.95 m
Width: 2.46 m
Overall height (rails up): 3.86 m
Transport height (rails down): 3 m
Platform length: 4.95 m
Platform width: 2.25 m
Ground clearance: 40 cm
Wheelbase: 2.29 m
Inside turning radius: 2.15 m
Outside turning radius: 4.85 m
Drive motors: 4×32VAC/3.3kW
Lift motors: 2×48VDC/10.0kW
Closed speed: 5 km/h
Open speed: 0.40 km/h
Gradeability: max. 40%
Working tilt: 2°/3°

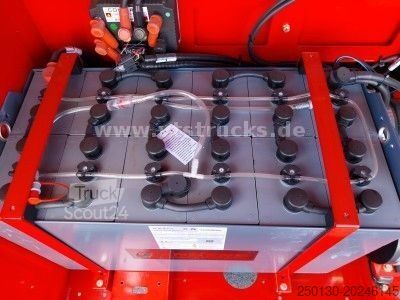

Batteries: 48 V / 630 Ah

Subject to errors and prior sale.
Internal vehicle ID: R58
