Nizki nakladalnik

Humbaur Humbaur 3-Achser Tieflader Parabelfederung, 12-24V-LED+Zink+Warnp.

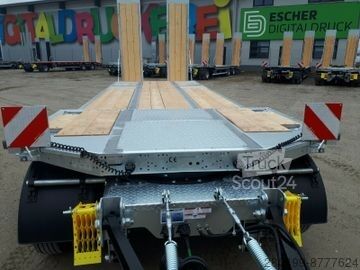

HUMBAUR 3-axle turntable low loader with cranked loading platform/high deck, model HTD309525-K - PARABOLIC SUSPENSION - V2

---
INCLUDED:
* Chassis frame and turntable galvanised by hot-dip immersion

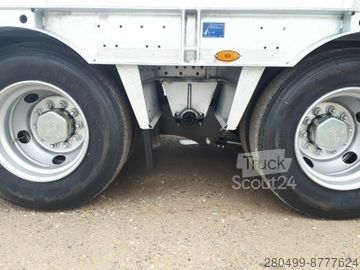

* Parabolic suspension with rear axle equalizer unit
* ABS braking system (suitable for tractor and truck)
* 12 & 24 Volt LED multi-voltage lighting system
Credpfxokn N R Es Ad Uoh
* Warning package and rotating beacon

Equipment:

* 24 months warranty
* Permissible total weight: 30,000 kg
* Payload: approx. 24,000 kg
* Chassis frame and turntable hot-dip galvanised
* Parabolic suspension with rear axle equalizer unit
* ABS braking system (suitable for tractor and truck)
* 12 & 24 Volt LED multi-voltage lighting system, 15-pin 24V connector and 13-pin adapter
* Loading height: approx. 880 mm
* Tyres: 235/75R17.5 – 12 times
* Low loader platform: 6,500 mm including approach ramp
* B-dimension: 10,760 mm
* Drawbar with 8° inclined towing eye, Ø 40 mm, height adjustable
* 3-position drawbar mount for various truck coupling heights
* 3 pairs of 10 t lashing rings, recessed in low bed
* 2 pairs of 10 t lashing rings, recessed in high bed
* 4 pairs of 3 t lashing points on outer frame of low bed
* 4 pairs of 2 t lashing points above wheel cut-out at 2nd and 3rd axle
* Chassis frame and turntable hot-dip galvanised
* One-piece ramps, approx. 3150 x 750 mm, with spring assist and mechanical lateral shift
* Ramp angle: approx. 10-11°
* Softwood flooring for loading platform and ramps
* Rear pendulum support legs
* Climbing strips welded onto approach ramp
* 30,000 kg gross weight only with special permit according to §70
* Brake connections: red/yellow
* Warning package and rotating beacon
---
Modular design for easy retrofitting with 3 m folding extension, toolbox in high deck, plank box under the loading platform, etc.

---
*Stock vehicle – immediately available
*Subject to prior sale
*Ex works price
