WEB-TRAILER ARA 18 Wechsel-Schlitten Container Abroller zink

Gross vehicle weight: 20,000 kg
Unladen weight: 3,490 kg
Payload capacity: 16,510 kg
Overall length: 9,630 mm
Width: 2,500 mm

Container lengths from 5,500 mm to 7,000 mm

Further information:
- Complete LED lighting
- Front overhang: 850 mm (standard for roll-off trailers)
- Suspension centre: 1,270 mm (track width outside-outside approx. 1,390 mm), standard roll-off trailer: 22.5 single + 19.5 twin wheels
- Ride height unladen: front approx. 1,150 mm, centre approx. 1,275 mm (main beam upper edge not straight), container support approx. 1,185 mm

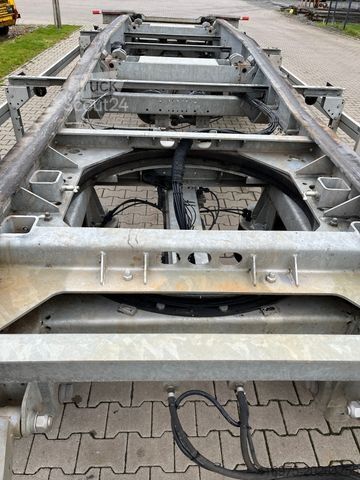

- Chassis length approx. 6,970 mm
- Rear overhang approx. 980 mm (standard roll-off trailer)
- Chassis end for roll-off trailer
- Additional long-beam reinforcement due to large suspension centre
Gkedpoxmq Hxofx Affec
- Main beam height at front approx. 130 mm
- Steel quality: main flanges ST52-3, web plate QSTE380, other components ST37 or QSTE380
- Main beam flanges: top 120x15 mm, bottom 120x10 mm, bottom at cranked area 120x15 mm
- Towing eye ø 40 mm (for turntable drawbar trailers)
- Tyres: 265/70R19.5 twin
- LED lighting
- Two pairs of special low-lashing hook locks for roll-off containers (pneumatically operated)
- Collision buffer
- Mudguards
- Underrun protection
- Open toolbox / mesh box
- Hot-dip galvanised
