Tovorno vozilo za posebne namene

UNIMOG FAS Expeditionsaufbau (nur Koffer) Grau

FAS expedition body (box only) grey----Internal no.:

Sales price incl. 19% VAT

Net price: 62,941.17 Euro
Gross price: 74,900 Euro

Vehicle description:

This offer is strictly for an empty motorhome/expedition body!

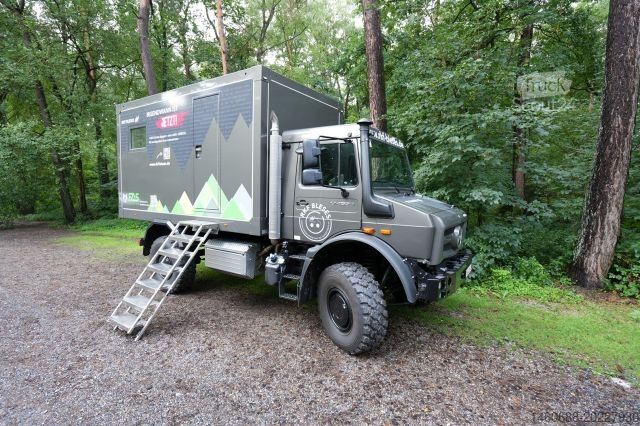

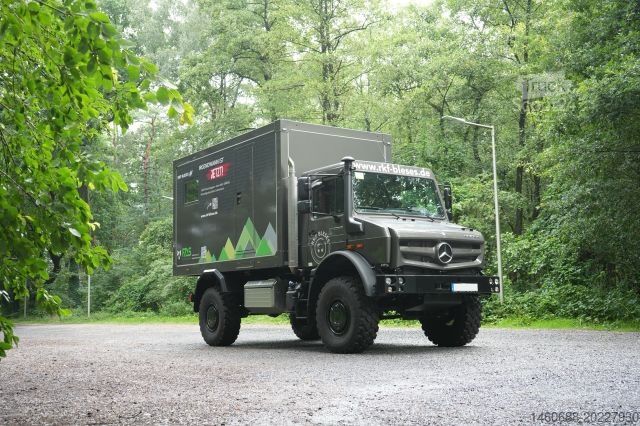

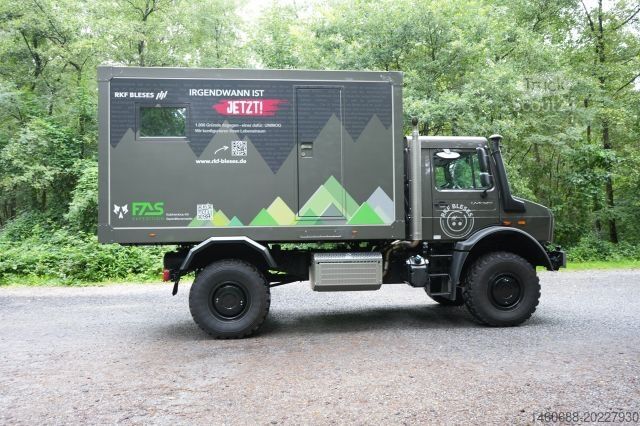

The vehicle shown in the picture must be purchased separately.

Further technical data

External dimensions approx.: L4.10m x W2.28m x H2.28m
Internal dimensions approx.: L3.94m x W2.12m x H2.00m

Vehicle data:

FAS box body

Special equipment

Empty cabin up to 4.5m
Steel frame / with corner plates top / bottom for mounting on twistlocks

* 70mm GRP sandwich panels all around
* 60mm GRP sandwich panels roof and floor plate
* Roof plate walkable, reinforced with multiplex insert, installed approx. 8cm below the frame to protect solar panels, roof windows and fans, incl. rainwater drainage
* Floor plate with multiplex insert
* Door cut-out as per customer specification
* Container frame galvanized, sandwich panels in RAL
* White 9003 with UV-resistant gelcoat top layer
* Unladen weight approx. 1,500kg

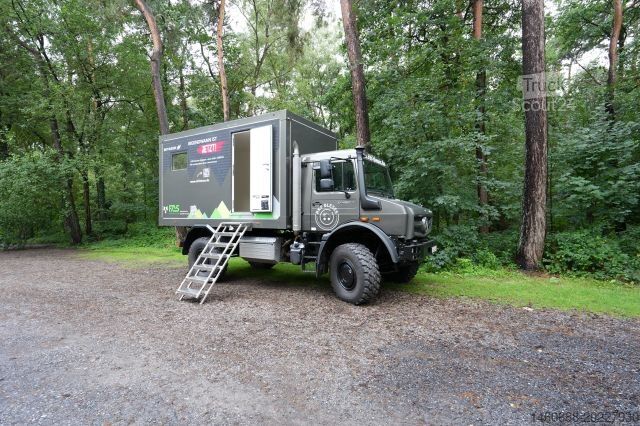

Door, 3-point locking Sideway T62177R 550 x 1700 mm
* right-hand hinge
* Standard powder coated in RAL 9016 White
* Aluminium frame
* Opening angle 180°
* Stainless steel designer handle with low projection on interior side
* If applicable, keyed alike with passage door and storage flaps
* Complete installation

Side window KCT 650025 800 x 600mm
* Incl. blackout and mosquito protection
* Incl. thermal insulation glazing
* Complete installation

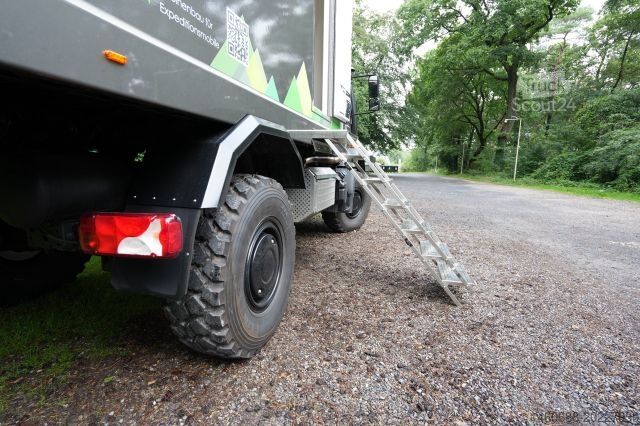

External staircase
* Custom-made, manual
* Manually retractable into the subframe or
* Container frame under entrance door of cabin, staircase rests on the ground and
* Can be walked on at any angle
* Stainless steel
* Incl. 4-6 steps depending on vehicle height
* Complete installation
Crodpfx Adjxll I Io Ueh

Installation of marker lights on the cabin
* 4 illuminated marker elements (2 red at the upper rear, 2 white at the upper front corners of the cabin)
* Complete installation

Installation of side marker lights
* 4 illuminated orange side marker elements (2 on each side if rear lights are mounted below)
* Complete installation

Paintwork for the cabin (up to 4m) in metallic color

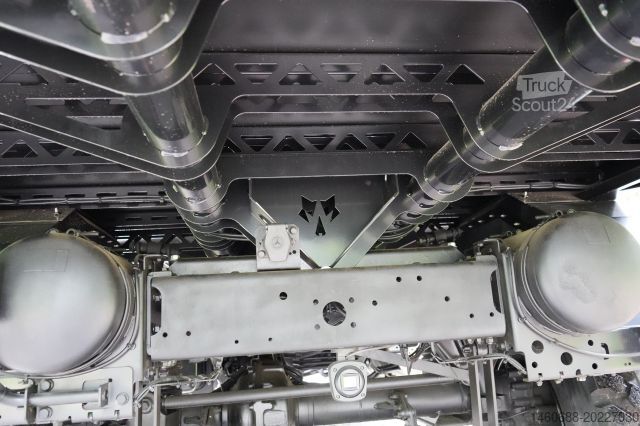

Subframe for boxes up to 5m
* Combined spring and 4-point diamond mounting
* approx. 500 kg
* Galvanized (paint finish in RAL color possible on request and at extra cost)

Mounting of subframe

No liability for printing & typing errors. Subject to error and prior sale. Our general terms and conditions apply.
